FEATURES & APPLICATIONS

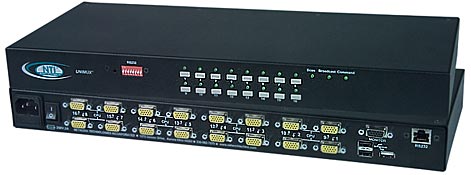

The UNIMUXâ„¢ High Density USB KVM Switch allows a user to control up to 32 USB computers with one USB keyboard, USB mouse and VGA monitor. Dedicated internal microprocessors emulate keyboard and mouse presence to each attached CPU 100% of the time so all computers boot error-free.

• The High Density Switch saves rack space
  • 4-, 8- and 16-port switches are 1RU in height.
  • 32-port switch is 2RU in height.
  • Rackmount kit included.
• Features NTI's patented true autoboot USB switching – all attached USB PCs, MACs and SUNs can be booted simultaneously.
• Compatible with USB-enabled PC, SUN and MAC computers.
• Crisp and clear 2048x1536 video resolution.
• Fully compliant with USB 1.1 standards.
• USB MAC and SUN start-up keys are supported.
• Supports MAC soft (keyboard) power-on.
• SUN extra keys are emulated on USB keyboards with Windows keyboard layouts.
• Supports international keyboard layouts in auto-detection mode.
• Flash upgradeable.
• Cabling runs are simplified with NTI's high density KVM switch cables.
• Optional support for a USB 1.1 device, in addition to keyboard and mouse, such as a USB touch screen monitor or CAC card reader.
• Optional extender port for locating a remote user up to 300 feet via CAT5/5e/6 cable.
  • Only one user can be active at a time.
  • Locked out user must wait five seconds after last keystroke or mouse movement from active user.
